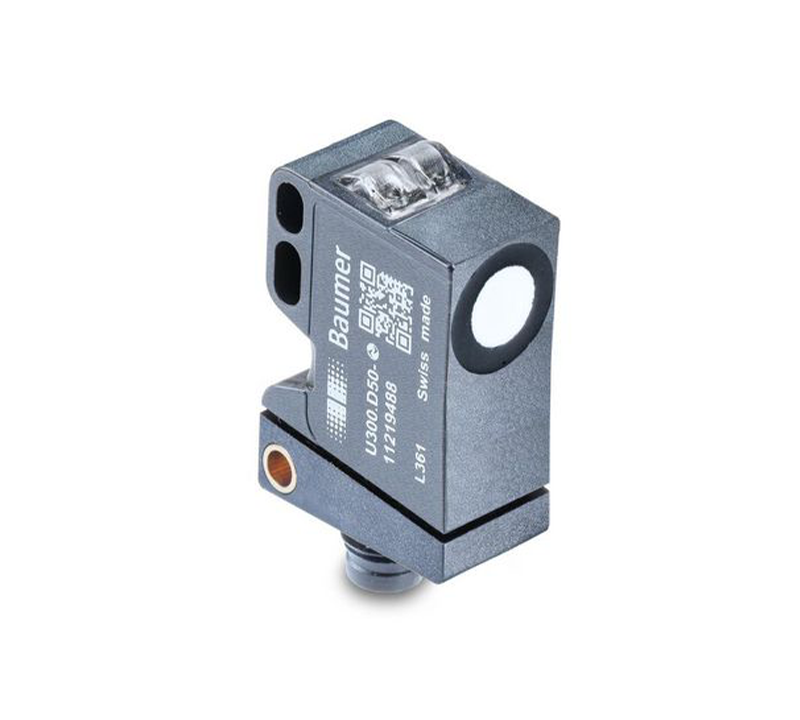

| Technical Data | |
|---|---|
| General Data | |
| Scanning range Sd | 0 ... 500 mm |
| Reflector position Sde | 0 ... 500 mm |
| Adjusting range reflector (operating range) | ± 2,5 % Sde |
| Adjusting range reflector (limit range) | ± 5 % Sde |
| Version | IO-Link |
| Repeat accuracy | < 0,5 mm |
| Response time ton/toff min | < 16 ms |
| Response time ton/toff standard | < 40 ms |
| Temperature drift | < 2 % Sde |
| Power-up drift | Compensated after 15 min. |
| Sonic frequency | 290 kHz |
| Adjustment | qTeach, line-Teach, IO-Link |
| Alignment aid | Light indicator flashing |
| Light indicator | LED yellow |
| Power on indication | LED green |
| Alignment measuring axis | < 2° |
| Electrical Data | |
| Voltage supply range +Vs | 12 ... 30 VDC |
| Current consumption typ. | 35 mA |
| Output circuit | Push-pull |
| Output current | < 100 mA |
| Voltage drop Vd | < 3 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Mechanical Data | |
| Type | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Width / Diameter | 12,9 mm |
| Height / Length | 32,2 mm |
| Depth | 23 mm |
| Connection types | Connector M12 |
| Communication Interface | |
| Baud rate | 38,4 kBaud (COM 2) |
| Cycle time | ≥ 8 ms |
| Process data length | 32 Bit |
| Process data structure | Bit 0 = SSC1 (distance) Bit 1 = SSC2 (distance) Bit 2 = Quality Bit 3 = Alarm Bit 5 = SSC4 (counter) Bit 8-15 = Scale factor Bit 16-47 = 32 Bit measurement |
| IO-Link port type | Class A |
| Additional data | Distance Excess gain Operating cycles Operating hours Boot cycles Operating voltage Device temperature Histograms |
| Adjustable parameters | Time filters LED status indicators Output logic Output circuit Counter Beam forming Deactivate the sensor element Find Me function |
| Technical Data | |
| Mechanical Data | Ambient Conditions |
| Connection types | Connector M8 4 pin |
| Operating temperature | -25 ... +65 °C |
| Storage temperature | -40 ... +75 °C |
| Protection class | IP 67 |
