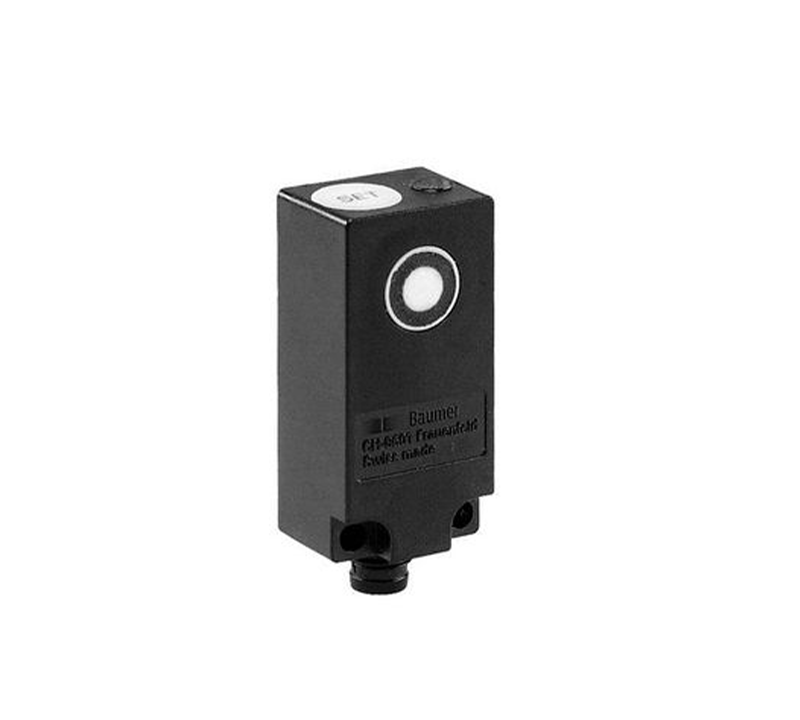

Ultrasonic distance measuring sensors Baumer UNDK 20P6912 S35A
| General Data |
| Scanning range sd |
40 ... 400 mm |
| Scanning range far limit Sde |
60 ... 400 mm |
| Hysteresis typ. |
4 % Sde |
| Repeat accuracy |
< 0,5 mm |
| Temperature drift |
< 0,18 % Sde/K |
| Response time ton |
< 25 ms |
| Release time toff |
< 25 ms |
| Sonic frequency |
290 kHz |
| Adjustment |
Teach-in |
| Alignment aid |
Target indication flashing |
| Output indicator |
LED green |
| Electrical Data |
| Voltage supply range +Vs |
12 ... 30 VDC |
| Current consumption max. (no load) |
35 mA |
| Output circuit |
PNP make function (NO) |
| Output current |
< 200 mA |
| Voltage drop Vd |
< 2 VDC |
| Residual ripple |
< 10 % Vs |
| Short circuit protection |
Yes |
| Reverse polarity protection |
Yes |
| Mechanical Data |
| Type |
Rectangular |
| Housing material |
Polyester |
| Width / Diameter |
20 mm |
| Height / Length |
42 mm |
| Depth |
15 mm |
| Connection types |
Connector M8 |
| Ambient Conditions |
| Operating temperature |
-10 ... +60 °C |
| Protection class |
IP 67 |
