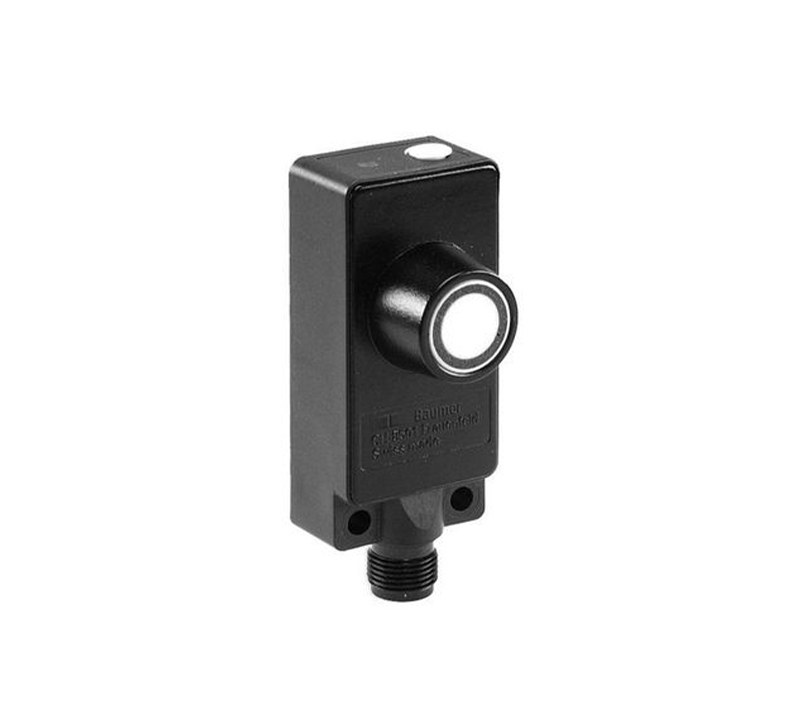

Ultrasonic distance measuring sensors Baumer UNDK 30P1703 S14
| General Data |
| Scanning range sd |
100 ... 1000 mm |
| Scanning range far limit Sde |
100 ... 1000 mm |
| Hysteresis typ. |
4 % Sde |
| Repeat accuracy |
< 0,5 mm |
| Synchronization |
Yes |
| Multiplex version |
On request |
| Temperature drift |
< 0,1 % Sde/K |
| Response time ton (sync on) |
< 50 ms |
| Release time toff (sync on) |
< 50 ms |
| Sonic frequency |
240 kHz |
| Adjustment |
Potentiometer |
| Alignment aid |
Target indication flashing |
| Output indicator |
LED green |
| Electrical Data |
| Voltage supply range +Vs |
12 ... 30 VDC |
| Current consumption max. (no load) |
35 mA |
| Output circuit |
PNP make function (NO) |
| Output current |
< 200 mA |
| Voltage drop Vd |
< 2 VDC |
| Residual ripple |
< 10 % Vs |
| Short circuit protection |
Yes |
| Reverse polarity protection |
Yes |
| Mechanical Data |
| Type |
Rectangular |
| Housing material |
Polyester / die-cast zinc |
| Width / Diameter |
30 mm |
| Height / Length |
65 mm |
| Depth |
31 mm |
| Connection types |
Connector M12 |
| Ambient Conditions |
| Operating temperature |
-10 ... +60 °C |
| Protection class |
IP 67 |
