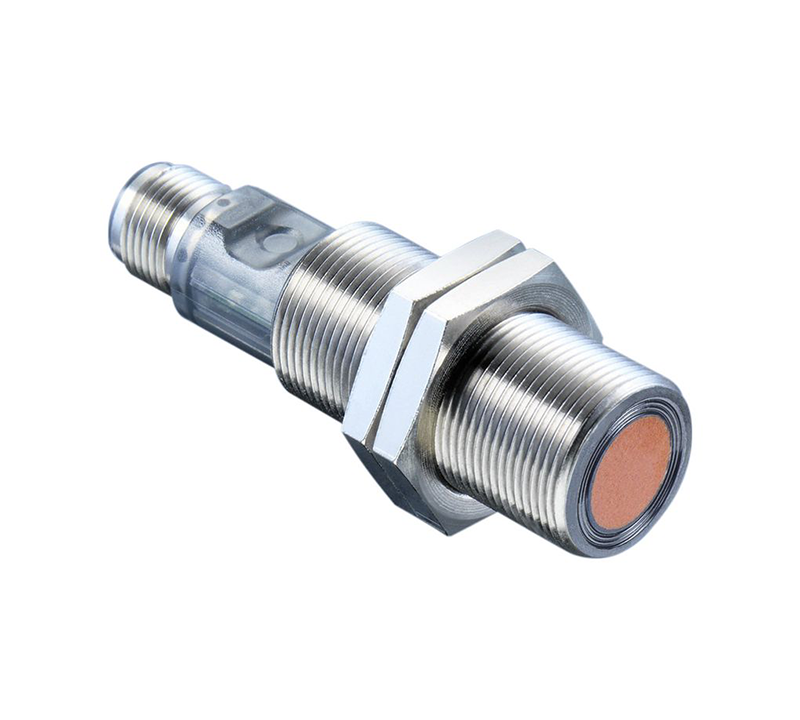

Ultrasonic distance measuring sensors Baumer UR18.DA0.2-11200641
| General Data |
| Scanning Range Sd |
70 ... 1000 mm |
| Scanning Range Close Limit Sdc |
70 ... 1000 mm |
| Scanning Range Far Limit Sde |
70 ... 1000 mm |
| Repeat Accuracy |
< 0.5 mm |
| Resolution |
< 0.3 mm |
| Response Time Ton |
< 40 ms |
| Release Time Toff |
< 40 ms |
| Temperature Drift |
< 2 % of distance to target So |
| Power-up Drift |
Compensated after 15 min. |
| Sonic Frequency |
200 kHz |
| Adjustment |
qTeach, line-Teach |
| Alignment Aid |
Light indicator flashing |
| Light Indicator |
LED yellow |
| Power on Indication |
LED green |
| Alignment Measuring Axis |
< 2° |
| Electrical Data |
| Voltage Supply Range +Vs |
12 ... 30 VDC |
| Current Consumption Typ. |
35 mA |
| Output Circuit |
Voltage output |
| Output Signal |
0 ... 10 V / 10 ... 0 V |
| Residual Ripple |
< 10 % Vs |
| Short Circuit Protection |
Yes |
| Reverse Polarity Protection |
Yes, Vs to GND |
| Mechanical Data |
| Type |
Cylindrical threaded |
| Housing Material |
Stainless steel (V2A) / TR90 |
| Coating Active Face |
PEEK |
| Width / Diameter |
18 mm |
| Height / Length |
64 mm |
| Connection Types |
Connector M12 5 pin |
| Ambient Conditions |
| Operating Temperature |
-25 ... +65 °C |
| Storage Temperature |
-40 ... +75 °C |
| Protection Class |
IP 67/69 |
