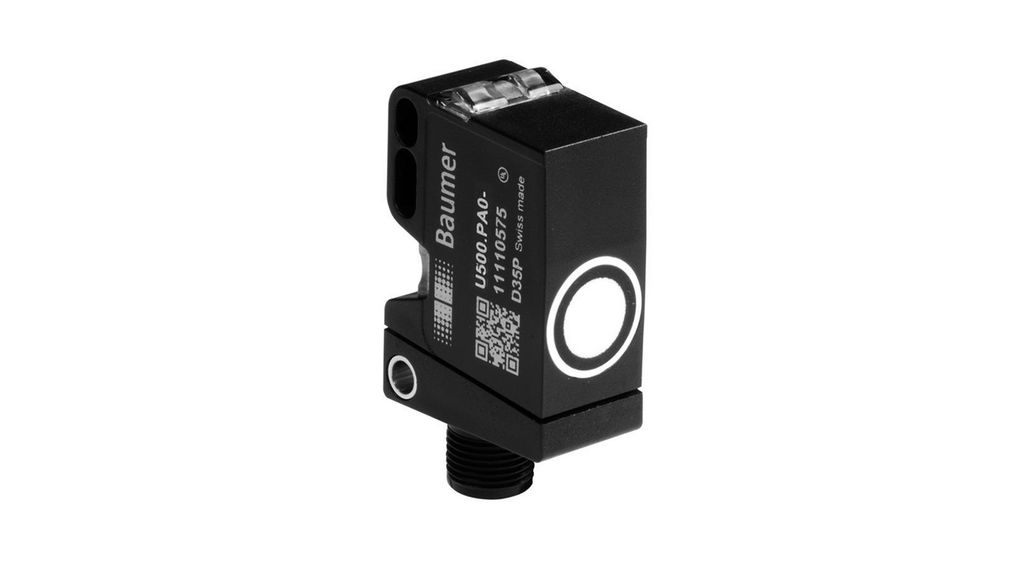

Ultrasonic proximity sensors Baumer 500.PA0-GP1B.72O U500.PA0-11110577
| General Data |
| Scanning range Sd |
100 ... 1000 mm |
| Scanning range far limit Sde |
100 ... 1000 mm |
| Hysteresis typ. |
4 % Sde |
| Repeat accuracy |
< 0.5 mm |
| Temperature drift |
< 2 % Sde |
| Power-up drift |
compensated after 15 min. |
| Response time ton |
< 50 ms |
| Release time toff |
< 50 ms |
| Sonic frequency |
220 kHz |
| Adjustment |
qTeach |
| Alignment aid |
light indicator flashing |
| Light indicator |
LED yellow |
| Power on indication |
LED green |
| Alignment measuring axis |
< 2° |
| Electrical Data |
| Voltage supply range +Vs |
12 ... 30 VDC |
| Current consumption typ. |
35 mA |
| Output circuit |
push-pull |
| Output current |
< 100 mA |
| Voltage drop Vd |
< 3.5 VDC |
| Residual ripple |
< 10 % Vs |
| Short circuit protection |
yes |
| Reverse polarity protection |
yes |
| Mechanical Data |
| Type |
rectangular |
| Housing material |
plastic (ASA, PMMA) |
| Width / diameter |
18 mm |
| Height / length |
45 mm |
| Depth |
32 mm |
| Connection types |
connector M12 |
| Ambient Conditions |
| Operating temperature |
-25 ... +65 °C |
| Storage temperature |
-40 ... +75 °C |
| Protection class |
IP 67 |
