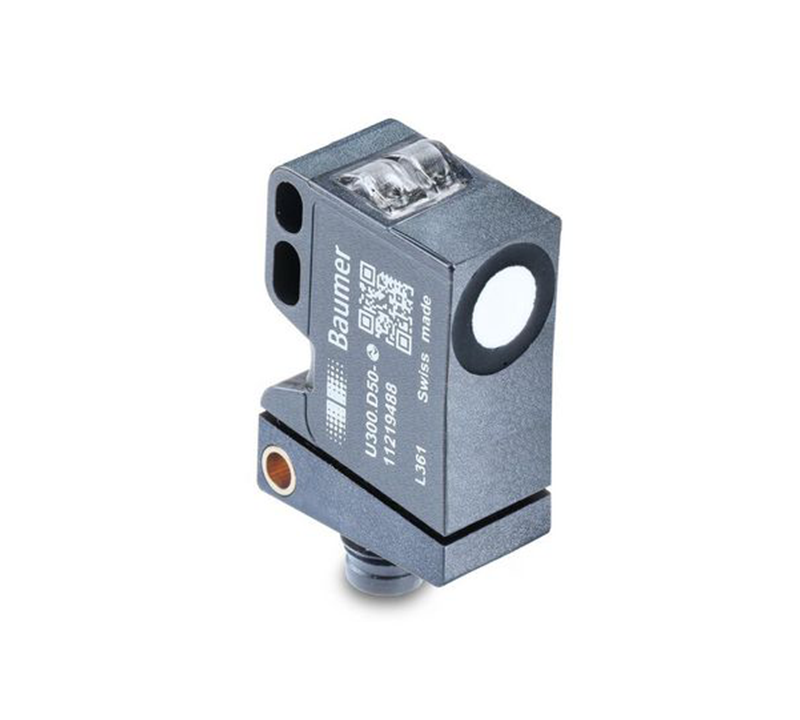

Sensor
| General data | |
|---|---|
| Special type | 2 point proximity switch |
| Scanning range Sd | 15 … 500 mm |
| Scanning range far limit Sde | 15 … 500 mm |
| Version | IO-Link dual channel |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | < 0,5 mm |
| Temperature drift | < 2 % Sde |
| Power-up drift | Compensated after 15 min. |
| Response time ton/toff min | < 16 ms |
| Response time ton/toff standard | < 40 ms |
| Sonic frequency | 290 kHz |
| Adjustment | qTeach, line-Teach, IO-Link |
| Output indicator | Yellow LED / red LED |
| Power on indication | LED green |
| Alignment measuring axis | < 2° |
| Electrical data | |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption typ. | 35 mA |
| Output circuit | Push-pull |
| Output current | < 100 mA |
| Voltage drop Vd | < 3 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Communication interface | |
| Interface | IO-Link V1.1 |
| Baud rate | 38,4 kBaud (COM 2) |
| Cycle time | >= 8 ms |
| Process data length | 32 Bit |
| Process data structure | Bit 0 = SSC1 (distance) Bit 1 = SSC2 (distance) Bit 2 = quality Bit 3 = alarm Bit 5 = SSC4 (counter) Bit 8-15 = scale factor Bit 16-47 = 32 Bit measurement |
| IO-Link port type | Class A |
| Additional data | Distance Excess gain Operating cycles Operating hours Boot cycles Operating voltage Device temperature Histograms |
| Adjustable parameters | Time filters LED status indicators Output logic Output circuit Counter Beam forming Deactivate the sensor element Find Me function |
| Mechanical data | |
| Type | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Width / diameter | 12,9 mm |
| Height / length | 32,2 mm |
| Depth | 23 mm |
| Connection types | Connector M8 4 pin |
| Ambient conditions | |
| Operating temperature | -25 … +65 °C |
