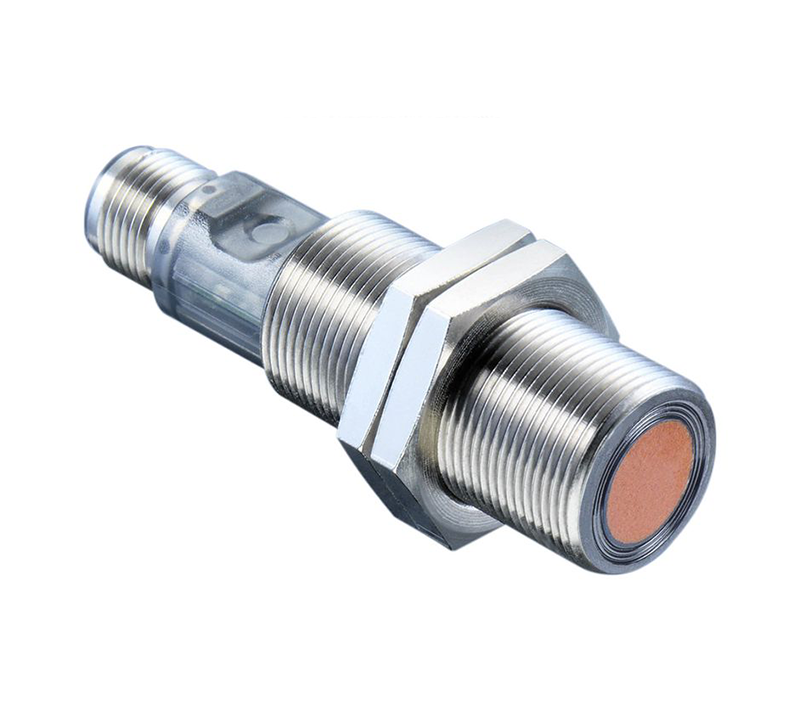

Sensor
| General Data | |
|---|---|
| Special Type | 2 point proximity switch |
| Scanning Range Sd | 70 ... 1000 mm |
| Scanning Range Far Limit Sde | 70 ... 1000 mm |
| Version | IO-Link dual channel |
| Hysteresis Typ. | 4 % Sde |
| Repeat Accuracy | < 0.5 mm |
| Temperature Drift | < 2 % Sde |
| Power-up Drift | Compensated after 15 min. |
| Response Time Ton | < 40 ms |
| Release Time Toff | < 40 ms |
| Sonic Frequency | 200 kHz |
| Adjustment | qTeach, line-Teach, IO-Link |
| Alignment Aid | Light indicator flashing |
| Output Indicator | Yellow LED / Red LED |
| Power on Indication | LED green |
| Alignment Measuring Axis | < 2° |
| Electrical Data | |
| Voltage Supply Range +Vs | 12 ... 30 VDC |
| Current Consumption Typ. | 35 mA |
| Output Circuit | Push-pull |
| Output Current | < 100 mA |
| Voltage Drop Vd | < 3.5 VDC |
| Residual Ripple | < 10 % Vs |
| Short Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Mechanical Data | |
| Type | Cylindrical threaded |
| Housing Material | Stainless steel (V2A) / TR90 |
| Coating Active Face | PEEK |
| Width / Diameter | 18 mm |
| Height / Length | 64 mm |
| Connection Types | Connector M12 5 pin |
| Ambient Conditions | |
| Operating Temperature | -25 ... +65 °C |
| Storage Temperature | -40 ... +75 °C |
| Protection Class | IP 67/69 |
| Communications Interface | |
| Interface | IO-Link V1.1 |
| Baud Rate | 38.4 kBaud (COM 2) |
| Cycle Time | > 12 ms |
| Process Data Length | 32 Bit |
| Process Data Structure | Bit 0 = SSC1 (distance) Bit 1 = SSC2 (distance) Bit 2 = quality Bit 3 = alarm Bit 5 = SSC4 (counter) Bit 8-15 = scale factor Bit 16-47 = 32 Bit measurement |
| IO-Link Port Type | Class A |
| Additional Data | Distance Excess gain Operating cycles Operating hours Boot cycles Operating voltage Device temperature Histograms |
| Adjustable Parameters | Time filters LED status indicators Output logic Output circuit Counter Beam forming Function of pin 5 Deactivate the sensor element Find Me function |
