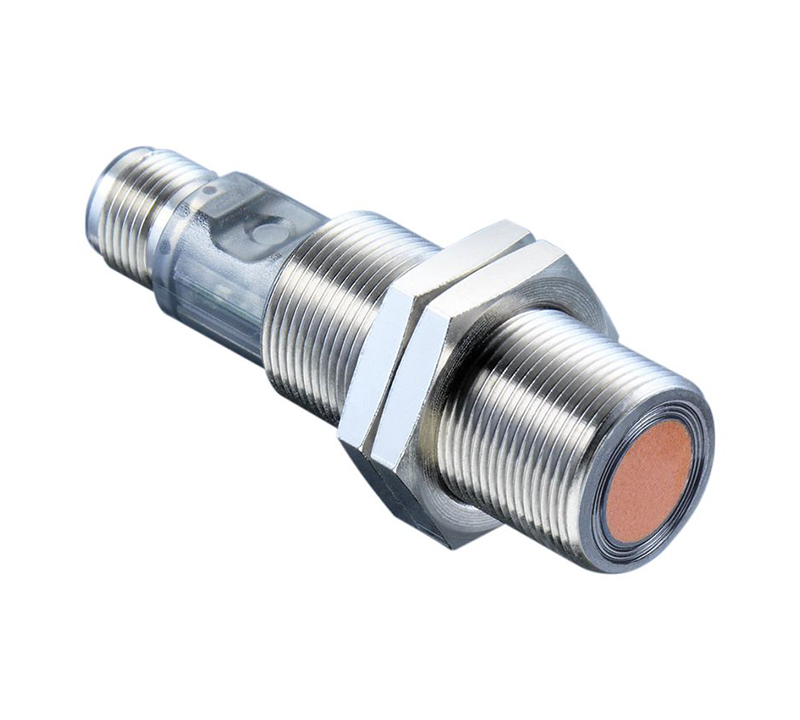

Sensor
| General Data | |
|---|---|
| Scanning range Sd | 0 ... 1000 mm |
| Reflector position Sde | 100 ... 1000 mm |
| Adjusting range reflector (operating range) | ± 2.5 % Sde |
| Adjusting range reflector (limit range) | ± 5 % Sde |
| Version | IO-Link |
| Repeat accuracy | < 0.5 mm |
| Temperature drift | < 2 % Sde |
| Power-up drift | Compensated after 15 min. |
| Response time ton | < 40 ms |
| Release time toff | < 40 ms |
| Sonic frequency | 200 kHz |
| Adjustment | qTeach, line-Teach, IO-Link |
| Alignment aid | Light indicator flashing |
| Light indicator | LED yellow |
| Power on indication | LED green |
| Alignment measuring axis | < 2° |
| Electrical Data | |
| Voltage supply range +Vs | 12 ... 30 VDC |
| Current consumption typ. | 35 mA |
| Output circuit | Push-pull |
| Output current | < 100 mA |
| Voltage drop Vd | < 3.5 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Mechanical Data | |
| Type | Cylindrical threaded |
| Housing material | Stainless steel (V2A) / TR90 |
| Width / diameter | 18 mm |
| Height / length | 64 mm |
| Connection types | Connector M12 5 pin |
| Coating active face | PEEK |
| Ambient Conditions | |
| Operating temperature | -25 ... +65 °C |
| Storage temperature | -40 ... +75 °C |
| Protection class | IP 67/69 |
| Communications Interface | |
| Interface | IO-Link V1.1 |
| Baud rate | 38.4 kBaud (COM 2) |
| Cycle time | > 12 ms |
| Process data length | 32 Bit |
| Process data structure |
Bit 0 = SSC1 (distance) Bit 1 = SSC2 (distance) Bit 2 = quality Bit 3 = alarm Bit 5 = SSC4 (counter) Bit 8-15 = scale factor Bit 16-47 = 32 Bit measurement |
| IO-Link port type | Class A |
| Additional data |
Distance Excess gain Operating cycles Operating hours Boot cycles Operating voltage Device temperature Histograms |
| Adjustable parameters |
Time filters LED status indicators Output logic Output circuit Counter Beam forming Deactivate the sensor element Find Me function |
