    Ultrasonic Sensors SICK UM30 UM30-2

    Type:UM30-213112
    Part No.:6037666

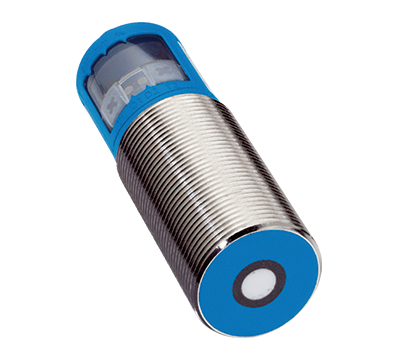

    Ultrasonic Sensors SICK UM30 UM30-2 UM30-213112

    Mechanics/electronics
    Supply voltage Vs DC 9 V ... 30 V 1)
    Power consumption ≤ 2.4 W 2)
    Initialization time < 300 ms
    Design Cylindrical
    Housing material

    Metal (nickel-plated brass, PBT)

    Ultrasonic transducer: polyurethane foam, glass epoxy resin

    Thread size M30 x 1.5
    Connection type Male connector, M12, 5-pin
    Indication LED display, 2 x LED
    Weight 150 g
    Sending axis Straight
    Dimensions (W x H x D) 30 mm x 30 mm x 84 mm
    Enclosure rating IP65 / IP67
    Protection class III
    • 1) Limit values, reverse-polarity protected Operation in short-circuit protected network: max. 8 A, class 2.
    • 2) Without load.

    Performance
    Operating range, limiting range 200 mm ... 1,300 mm, 2,000 mm
    Target Natural objects
    Resolution ≥ 0.18 mm
    Repeatability ± 0.15 % 1)
    Accuracy ± 1 % 2) 3)
    Temperature compensation
    Response time 92 ms
    Switching frequency 8 Hz
    Output time 23 ms
    Ultrasonic frequency (typical) 200 kHz
    Detection area (typical) See diagrams
    Additional function Adjustable operating modes: Switching point (DtO) / Switching window/Background (ObSB), teach-in of digital output, set levels of digital outputs, invertable digital output, set on delay digital output, synchronization of up to 50 sensors, multiplexing: no cross talk of up to 50 sensors, adjustable measurement filters: Measured value filters/Filter strength/Foreground suppression/Detection area/Sensitivity and sound beam, Display (can be deactivated), reset to factory default
    • 1) In relation to the current measured value, minimum value ≥ resolution.
    • 2) Referring to current measurement value.
    • 3) Temperature compensation can be switched off, without temperature compensation: 0.17 % / K.

    Interfaces
    Digital output
    Number 2 1)
    Type PNP
    Maximum output current IA ≤ 200 mA
    Multifunctional input (MF) 1 x MF
    Hysteresis 20 mm
    • 1) PNP: HIGH = VS - (< 2 V) / LOW = 0 V.

    Ambient data
    Ambient temperature, operation –25 °C ... +70 °C
    Ambient temperature, storage –40 °C ... +85 °C

    Classifications
    ECl@ss 5.0 27270804
    ECl@ss 5.1.4 27270804
    ECl@ss 6.0 27270804
    ECl@ss 6.2 27270804
    ECl@ss 7.0 27270804
    ECl@ss 8.0 27270804
    ECl@ss 8.1 27270804
    ECl@ss 9.0 27270804
    ECl@ss 10.0 27270804
    ECl@ss 11.0 27270804
    ETIM 5.0 EC001846
    ETIM 6.0 EC001846
    ETIM 7.0 EC001846
    ETIM 8.0 EC001846
    UNSPSC 16.0901 41111960
