    Sensor

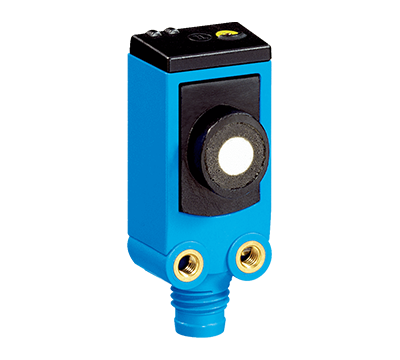

    Ultrasonic sensors Sick UC4

    Type:UC4-13345
    Part No.:6034670

    Mechanics/electronics
    Supply voltage Vs DC 15 V ... 30 V 1)
    Power consumption ≤ 0.75 W 2)
    Initialization time < 300 ms
    Design Rectangular
    Housing material

    Plastic (ABS)

    Ultrasonic transducer: polyurethane foam, glass epoxy resin

    Connection type Male connector, M8, 3-pin
    Indication 2 x LED
    Weight 10 g
    Sending axis Straight
    Dimensions (W x H x D) 16 mm x 40.1 mm x 16.7 mm
    Enclosure rating IP65 / IP67
    Protection class III
    • 1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.
    • 2) Without load.

    Performance
    Operating range, limiting range 13 mm ... 150 mm, 250 mm 1)
    Target Natural objects
    Resolution ≥ 0.1 mm
    Repeatability ± 0.15 % 2)
    Accuracy ± 1 % 3)
    Temperature compensation
    Response time 24 ms
    Switching frequency 30 Hz
    Output time 8 ms
    Ultrasonic frequency (typical) 380 kHz
    Detection area (typical) See diagrams
    Additional function Adjustable operating modes: Switching point (DtO) / Switching window/Background (ObSB), teach-in of digital output, invertable digital output, teach-in button(s) (can be deactivated), reset to factory default
    4)
    • 1) Teach-in from 21 mm.
    • 2) In relation to the current measured value, minimum value ≥ resolution.
    • 3) Referring to current measurement value.
    • 4) Functions may vary depending on sensor type.

    Interfaces
    Digital output
    Number 1 1)
    Type NPN
    Maximum output current IA ≤ 200 mA
    Hysteresis 2 mm
    • 1) NPN: HIGH = ≤ 2 V / LOW = UV.

    Ambient data
    Ambient temperature, operation –25 °C ... +70 °C 1)
    Ambient temperature, storage –40 °C ... +85 °C
    • 1) At operating temperatures of > 50 °C, the rear side of the UC4 must be installed with its surface flat against a bracket.

    Classifications
    ECl@ss 5.0 27270804
    ECl@ss 5.1.4 27270804
    ECl@ss 6.0 27270804
    ECl@ss 6.2 27270804
    ECl@ss 7.0 27270804
    ECl@ss 8.0 27270804
    ECl@ss 8.1 27270804
    ECl@ss 9.0 27270804
    ECl@ss 10.0 27270804
    ECl@ss 11.0 27270804
    ECl@ss 12.0 27272806
    ETIM 5.0 EC001846
    ETIM 6.0 EC001846
    ETIM 7.0 EC001846
    ETIM 8.0 EC001846
    UNSPSC 16.0901 41111960
