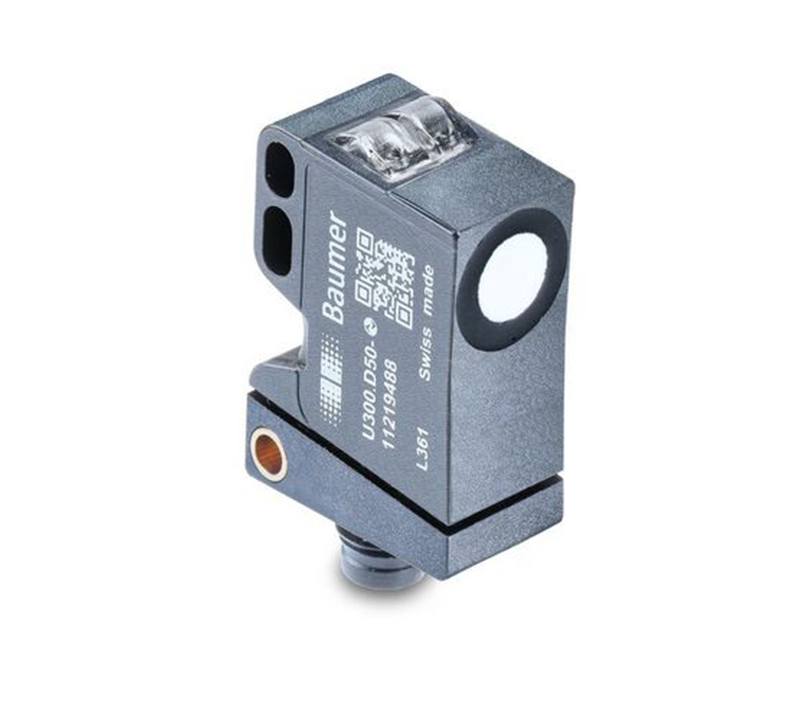

Sensor
| General Data | |
|---|---|
| emitter / receiver | receiver |
| scanning range Sd | 0 ... 1000 mm |
| scanning range far limit Sde | 0 ... 1000 mm |
| version | IO-Link |
| object size (at Sd = 50 mm) | > 4 cm² |
| hysteresis typ. | 5% Sde |
| repeat accuracy | < 1 mm |
| temperature drift | < 2% Sde |
| response time ton | < 2 ms |
| release time toff | < 2 ms |
| adjustment | qTeach, line-Teach, IO-Link |
| sonic frequency | 290 kHz |
| alignment aid | target indication flashing |
| output indicator | LED yellow |
| power on indication | LED green |
| Electrical Data | |
| voltage supply range +Vs | 12 ... 30 VDC |
| current consumption max. (no load) | 35 mA |
| output circuit | push-pull |
| output current | < 100 mA |
| voltage drop Vd | < 3 VDC |
| residual ripple | < 10 % Vs |
| short circuit protection | yes |
| reverse polarity protection | yes, Vs to GND |
| Communication Interface | |
| interface | IO-Link V1.1 |
| baud rate | 230.4 Kbaud (COM 3) |
| cycle time | > 0.8 ms |
| Communication Interface | |
| process data length | 32 Bit |
| process data structure | Bit 0 = SSC1 Bit 1 = SSC2 Bit 3 = alarm Bit 16-31 = 16 Bit measurement |
| IO-Link port type | Class A |
| additional data | excess gain operating cycles operating hours boot cycles operating voltage device temperature histograms |
| adjustable parameters | time filters LED status indicators output logic output circuit counter deactivate the sensor element Find Me function |
| Mechanical Data | |
| type | rectangular |
| housing material | plastic (ASA, PMMA) |
| width / diameter | 12.9 mm |
| height / length | 32.2 mm |
| depth | 23 mm |
| connection types | connector M8 4 pin |
| Ambient Conditions | |
| operating temperature | -25 ... +65 °C |
| storage temperature | -40 ... +75 °C |
| protection class | IP 67 |
