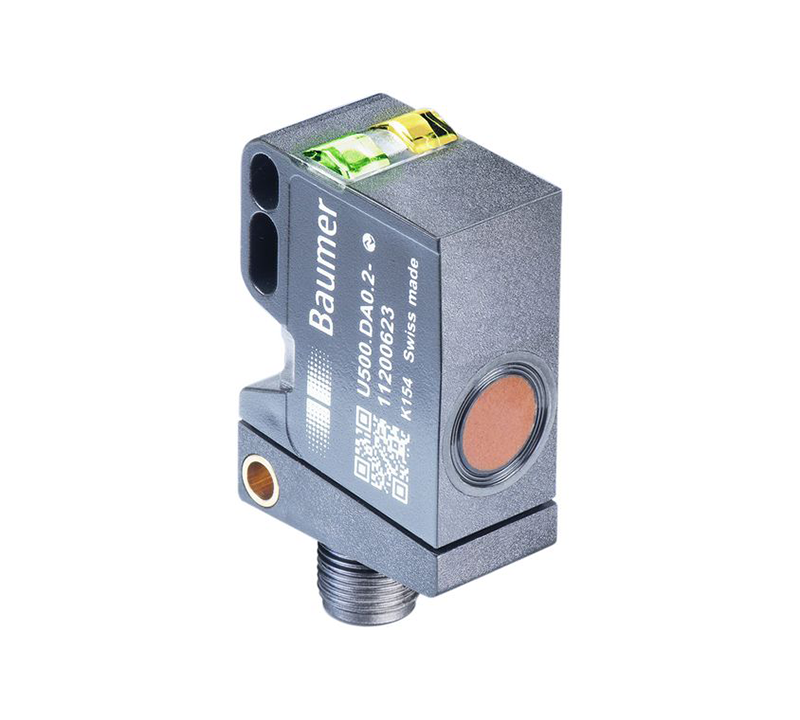

Ultrasonic through beam sensors Baumer U500.DA0.2-11200625
| General Data |
| scanning range Sd |
70 ... 1000 mm |
| scanning range close limit Sdc |
70 ... 1000 mm |
| scanning range far limit Sde |
70 ... 1000 mm |
| version |
IO-Link dual channel |
| hysteresis typ. |
4% Sde |
| repeat accuracy |
< 0.5 mm |
| resolution |
< 0.3 mm |
| response time ton |
< 40 ms |
| release time toff |
< 40 ms |
| temperature drift |
< 2% of distance to target So |
| power-up drift |
compensated after 15 min. |
| sonic frequency |
200 kHz |
| adjustment |
qTeach, line-Teach, IO-Link |
| light indicator |
LED yellow |
| power on indication |
LED green |
| alignment measuring axis |
< 2° |
| Electrical Data |
| voltage supply range +Vs |
12 ... 30 VDC |
| current consumption typ. |
35 mA |
| output circuit |
push-pull |
| output signal |
4 ... 20 mA / 20 ... 4 mA |
| output current |
< 100 mA |
| voltage drop Vd |
< 3.5 VDC |
| residual ripple |
< 10 % Vs |
| short circuit protection |
yes |
| reverse polarity protection |
yes, Vs to GND |
| Mechanical Data |
| type |
rectangular |
| housing material |
plastic (ASA, PMMA) |
| coating active face |
PEEK |
| width / diameter |
18 mm |
| height / length |
45 mm |
| depth |
32 mm |
| connection types |
connector M12 5 pin |
