Ultrasonic Welding

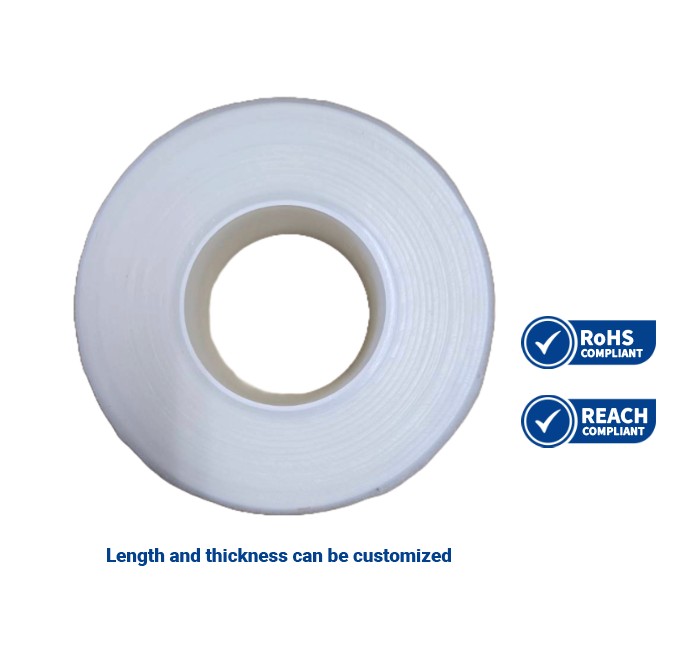

Ultrasonic Welding Film
Application Process and Material:
Ultrasonic welding process and special product packaging.
It can effectively prevent the appearance of plastic composite products
from damage during the ultrasonic compression process,
such as painting plastic shell,ABS plastic shell,PC plastic shell,
ABS+PC plastic shell, Nylon plastic shell..ect.
- Material: Environmental Friendly Synthetic Teflon
- Advantages: Reusable rate is over 10 times than ordinary PE film, it can effectively improve the ultrasonic compression process.
- Compliance With Regulation Standard: RoHs, halogen and REACH
- Application Process and Material: Ultrasonic welding process and special product packaging. It can effectively prevent the appearance of plastic composite products from damage during the ultrasonic compression process, such as painting plastic shell, ABS plastic shell, PC plastic shell, ABS+PC plastic shell, Nylon plastic shell..ect.
- Application Industry: Applied in ultrasonic welding process and special product packaging of industries such as Automotive, Electronics, Toys, Home Appliances, Cosmetics, High-end Packaging, Plastics...ect.
- Length and thickness can be customized
|
Thickness Range (mm) |
0.018–0.30 |
|
Width Range (mm) |
20–1200 |
|
Instant Heat Resistance (℃) |
210 |
|
Core inner diameter (mm) |
76 ± 1 |
|
Energy resistance |
0.018mm–0.23mm ≥ 200J–1000 / 0.01㎡ |
|
Elongation capability |
≥200% |
PE Protection Film Adhesion Strength and Application Guide
In industrial surface protection, selecting the correct "Adhesion Strength" is the most critical factor for quality control. Incorrect adhesion can lead to either insufficient protection or difficult-to-remove residue. This guide analyzes the six levels of PE protection film adhesion and their specific use cases.
|
Adhesion Level |
Peel Strength (g/cm) |
Characteristics |
Typical Applications |
|
Ultra-Low |
<5 |
Easy to apply/remove, zero residue |
Optical plates, high-end displays, glass lenses |
|
Low |
10-20 |
Stable adhesion, excellent re-peel ability |
Polished plastic sheets, titanium, silk-screened nameplates |
|
Medium-Low |
30-50 |
Strong attachment, highly versatile |
Furniture boards, stainless steel, artificial stone/marble |
|
Medium |
60-80 |
Designed for textured surfaces |
Fine-textured frosted plates, general difficult-to-bond surfaces |
|
High |
80-100 |
Powerful suction, high weather resistance |
Aluminum-plastic panels, architectural cladding, difficult plastics |
|
Ultra-High |
>100 |
Water-based acrylic PSA technology |
Coarse-textured aluminum, heavy-duty industrial surfaces |
