Dispensing

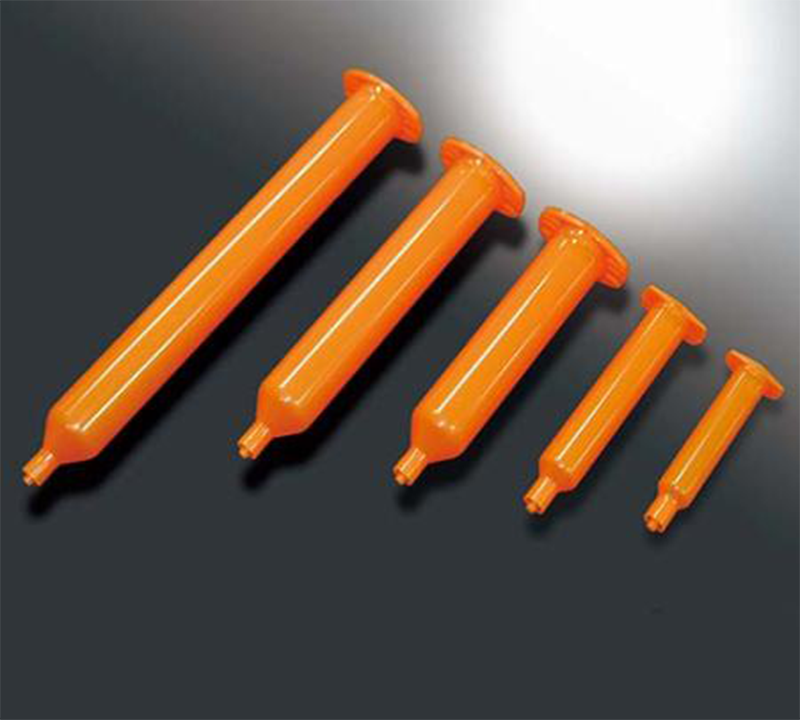

UV block syringe Musashi PSY
Finally actualized “The World First”! 100% protection from UV rays, furthermore remaining amount recognizable at a glance
- PSY-[]-[]
Syringe exclusively designed for UV curing materials.
This model is a syringe equipped with epoch- making functions, one of which is complete UV ray blockage and the other of which is manifest visibility of the remaining liquid level provided by improved transmittance in the visible light range.
Material: Polypropylene
This model is a syringe equipped with epoch- making functions, one of which is complete UV ray blockage and the other of which is manifest visibility of the remaining liquid level provided by improved transmittance in the visible light range.
Material: Polypropylene
| Syringe capacity | Model | Full length (mm) | Outside diameter (mm) | Flange dimension (mm) | Minimum Order Quantity (pcs per pack) | |
|---|---|---|---|---|---|---|
| Without graduations | With graduations | |||||
| 3 mL | PSY-3EU-OR | PSY-3EU-OR-M | 80 | φ11.7 | 24.3x14.3 | 50 |
| 5 mL | PSY-5EU-OR | PSY-5EU-OR-M | 80 | φ14.9 | 27x16 | 50 |
| 10 mL | PSY-10EU-OR | PSY-10EU-OR-M | 105.3 | φ18.3 | 32x20 | 50 |
| 20 mL | PSY-20FU-OR | PSY-20FU-OR-M | 104.8 | φ26.2 | 45x30 | 50 |
| 30 mL | PSY-30FU-OR | PSY-30FU-OR-M | 129.7 | φ26.2 | 45x30 | 50 |
| 50 mL | PSY-50FU-OR | PSY-50FU-OR-M | 160.7 | φ26.1 | 45x30 | 50 |
| 70 mL | PSY-70FU-OR | PSY-70FU-OR-M | 223.7 | φ26.5 | 45x30 | 50 |
| NEW 100 mL | PSY-100EU-OR | — | 191 | φ35.8 | 60x38.8 | 20 |
