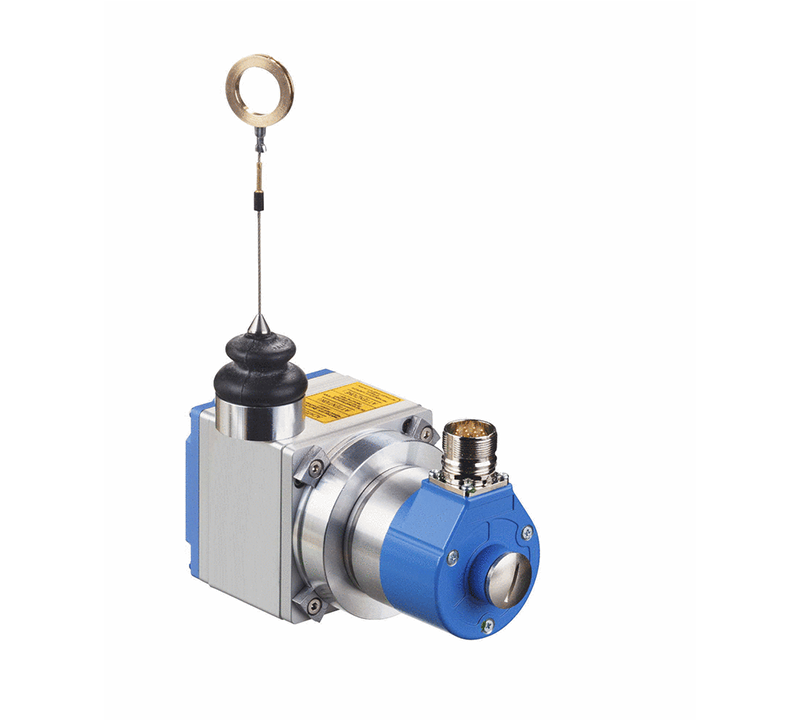

Sensor
Performance - BTF
Interfaces - BTF
Electrical data - BTF
Mechanical data - BTF
Ambient data - BTF
Classifications
| Measurement range | 0 m ... 3 m |
| Encoder | Absolute encoders |
| Resolution (wire draw + encoder) | 0.04 mm 1) 2) |
| Repeatability | ≤ 1 mm 3) |
| Linearity | ≤ ± 2 mm 3) |
| Hysteresis | ≤ 2 mm 3) |
- 1) The values shown have been rounded.
- 2) Example calculation based on the BTF08 with PROFINET: 200 mm (wire draw length per revolution - see Mechanical data): 262,144 (number of steps per revolution) = 0.001 mm (resolution of wire draw + encoder combination).
- 3) Value applies to wire draw mechanism.
Interfaces - BTF
| Communication interface | SSI |
| Programmable/configurable | ✔ |
Electrical data - BTF
| Connection type | Male connector, M23, 12-pin, radial |
| Supply voltage | 10 V ... 32 V |
| Power consumption | ≤ 0.8 W (without load) |
| MTTFd: mean time to dangerous failure | 150 years (EN ISO 13849-1) 1) |
- 1) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532.
Mechanical data - BTF
| Weight | 2 kg |
| Measuring wire material | Highly flexible stranded steel 1,4401 stainless steel V4A |
| Weight (measuring wire) | 7.1 g/m |
| Housing material, wire draw mechanism | Aluminum (anodized), zinc die cast |
| Spring return force | 6 N ... 14 N 1) |
| Length of wire pulled out per revolution | 200 mm |
| Life of wire draw mechanism | Typ. 1,000,000 cycles 2) 3) |
| Actual wire draw length | 3.2 m |
| Wire acceleration | 40 m/s² |
| Operating speed | 8 m/s |
| Mounted encoder | ATM60 SSI, ATM60-A1A0-K18, 1034293 |
| Mounted mechanic | MRA-F080-103D2, 6030125 |
- 1) These values were measred at an ambient temperature of 25 °C. There may be variations at other temperatures.
- 2) Average values, which depend on the application.
- 3) The service life depends on the type of load. This is influenced by environmental conditions, the installation location, the measuring range in use, the traversing speed, and acceleration.
Ambient data - BTF
| EMC | According to EN 61000-6-2 and EN 61000-6-3 |
| Enclosure rating | IP64 |
| Operating temperature range | –20 °C ... +70 °C |
Classifications
| ECl@ss 5.0 | 27270590 |
| ECl@ss 5.1.4 | 27270590 |
| ECl@ss 6.0 | 27270590 |
| ECl@ss 6.2 | 27270590 |
| ECl@ss 7.0 | 27270590 |
| ECl@ss 8.0 | 27270590 |
| ECl@ss 8.1 | 27270590 |
| ECl@ss 9.0 | 27270590 |
| ECl@ss 10.0 | 27270613 |
| ECl@ss 11.0 | 27270503 |
| ECl@ss 12.0 | 27270503 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
