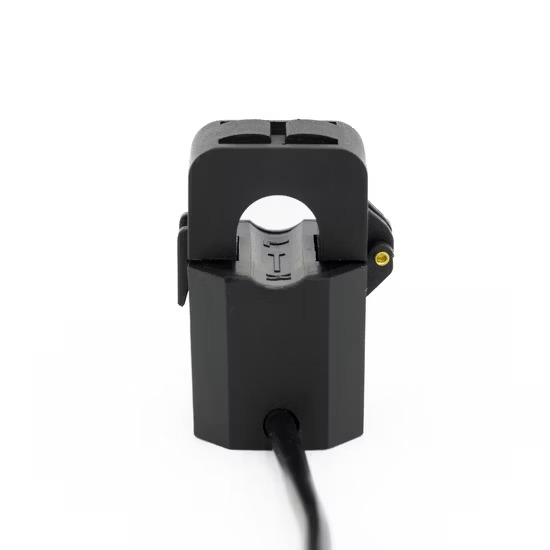

Xh-Sct-T10 (B) 30A 0.33V Sensor Clamp UL Split Core Monitoring CT Current Transformer
φ10mm Opening With 5 To 80 Amp Rating
| Model NO. | Xh-Sct-T10-30A 0.33V |
| Phase | Single |
| Operation Condition | Indoor |
| Usage | Measurement |
| Winding Form | Multilayer Honeycomb Type |
| Insulating Medium | Epoxy Resin |
| Installation | Active Type |
| Magnetic Circuit Structure | Combined Type |
| Voltage Transformation Principle | Capacitive Type |
| Model | Xh-Sct-T10(B) |
| Input Current | 30A |
| Output | 0.333VAC |
| ID | 10mm |
| Accuracy | 0.5 ,1.0 Class |
| Withstanding Voltage(Hi-Pot) | 3.5kv/1mA/1min |
| Weight | 75g |
| Color | Black ,White ,Blue |
| Wire Cable | Twist ,Sheath or Others |
| Specification | ROHS, ISO9001: 2000 |
