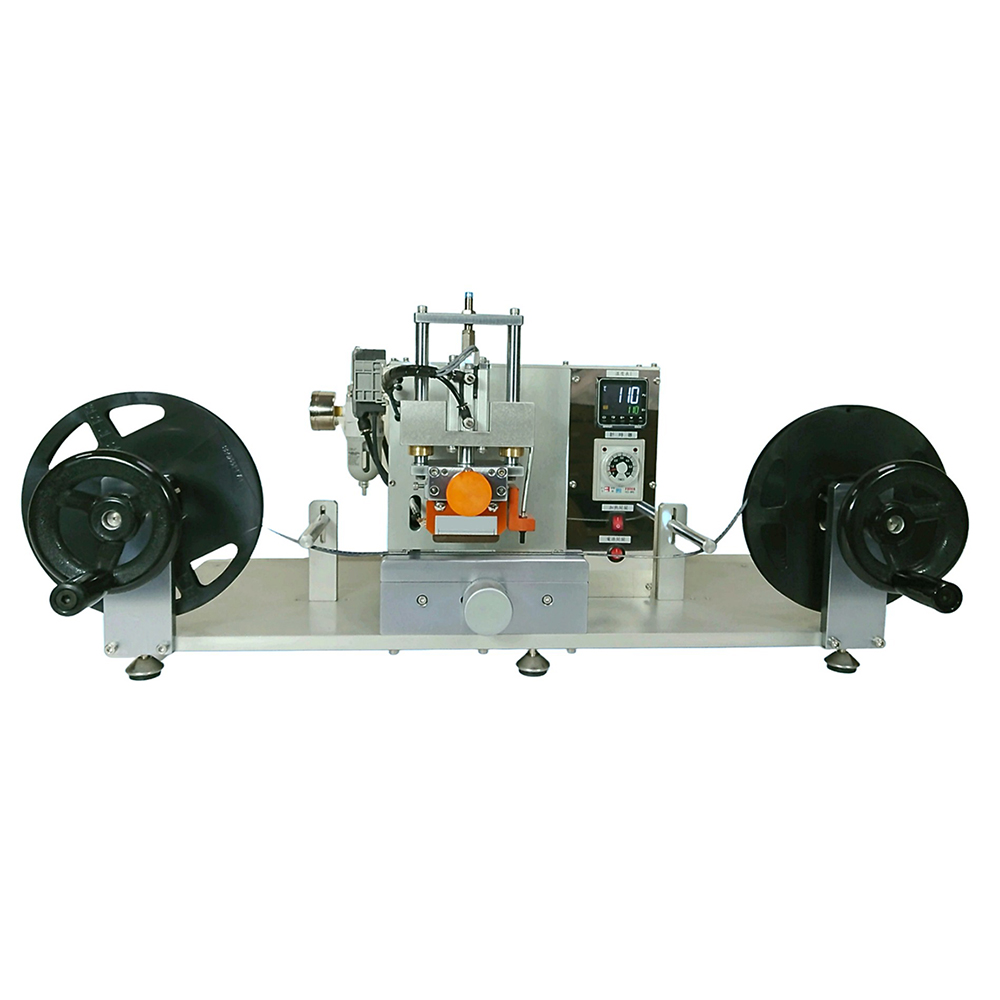

Cover Tape Heat Sealing (Rework) Machine
Suitable for manual inspection in tape & reel process.
When defective components are found, they can be immediately replaced and resealed with the heat sealing machine.
When defective components are found, they can be immediately replaced and resealed with the heat sealing machine.
- Wide compatibility: supports 8–32 mm carrier tape
- Precise sealing with optical fiber positioning
- Stable pneumatic heat sealing system
- Smart PID temperature control for consistent quality
- Fully adjustable: track width, sealing time, plate height & pressure
- Handles embossed tape up to 15 mm depth
Cover Tape Heat Sealing (Rework) Machine
Designed for tape & reel manual inspection and rework.
Defective components can be quickly replaced, and the carrier tape securely resealed with the heat sealing machine, ensuring product quality and production efficiency.
Designed for tape & reel manual inspection and rework.
Defective components can be quickly replaced, and the carrier tape securely resealed with the heat sealing machine, ensuring product quality and production efficiency.
|
Item |
Specification |
|
Function |
Replace defect components on carrier tape, then reseal |
|
Applicable Carrier Tape Width |
8 mm ~ 32 mm |
|
Track Width |
Manually adjustable |
|
Heat Seal Plate Position |
Manually adjustable |
|
Sealing Mechanism |
Pneumatic |
|
Position Offset Detection |
Optical fiber positioning |
|
Heat Sealing Time |
Adjustable |
|
Temperature Control |
PID thermometer, automatic detection |
|
Heat Seal Plate Pressure |
Adjustable |
|
Max. Embossed Carrier Tape Depth (k0) |
15 mm |
|
Heat Seal Plate Height |
Adjustable |
|
Positioning Method |
Pin hole alignment |
|
Machine Size |
1000 × 260 × 310 mm |
|
Machine Weight |
15 kg |
|
Power Supply |
AC 220V, 50/60Hz |
|
Air Pressure Requirement |
5.0 kg/cm² |
